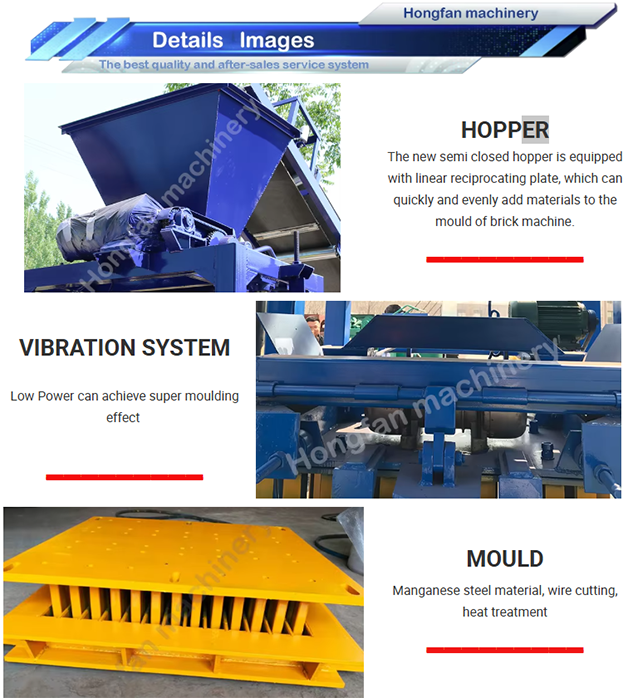

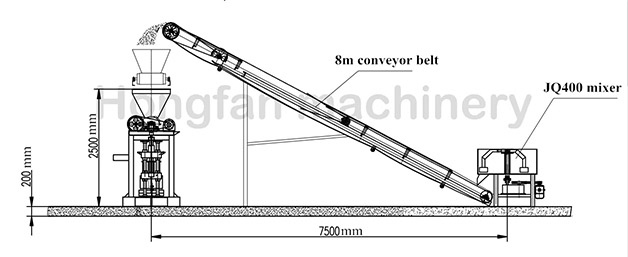

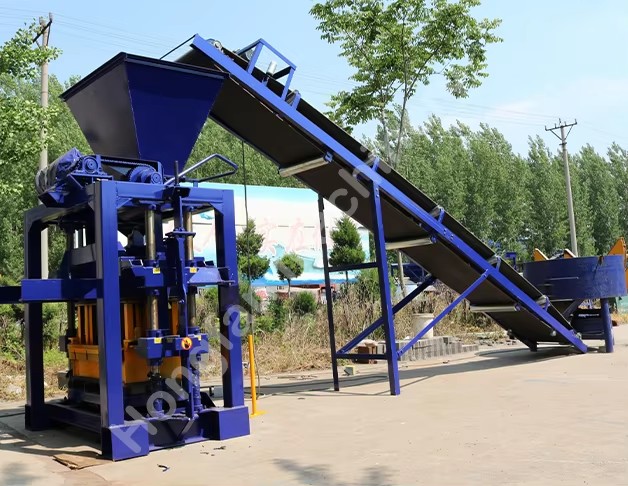

QTJ4-35 equipped with a hopper on top so it can be equipped with a belt conveyor automatic feeding system. Welcome to inquiry!
The operation video will be provided for your need.
| QTJ4-35 Main Technical Parameter | ||

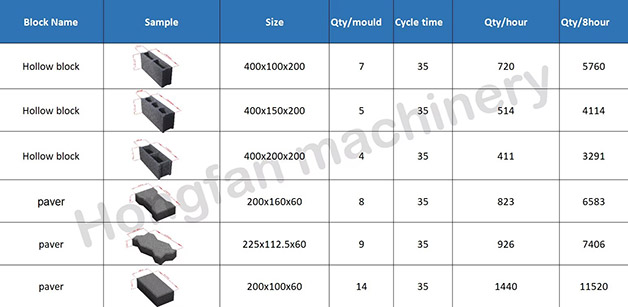

| 1 | Molding Pieces | 4 pcs/mold (400*200*200 Hollow Brick) |
| 2 | Molding Cycle | 35 seconds |
| 3 | Power | 8.6kw |
| 4 | Dimension | 1500x1660x2460mm |
| 5 | Vibration Frequency | 2800r·pm |
| 6 | Exciting Power | 40KN |
| 7 | Pallet Size | 880x550mm, 850*550mm, |
| 8 | Brick output method | Handcart |
| Product Name | Brick Macking Machine |
| Raw material | concrete |
| Keywords | Cement Block Moulding Machine |
| Molding cycle | 40s |
| Worker | 2-3 Worker |
| Main market | Global Concrete Block Making Machine |
| pallet size | 880*550mm |
