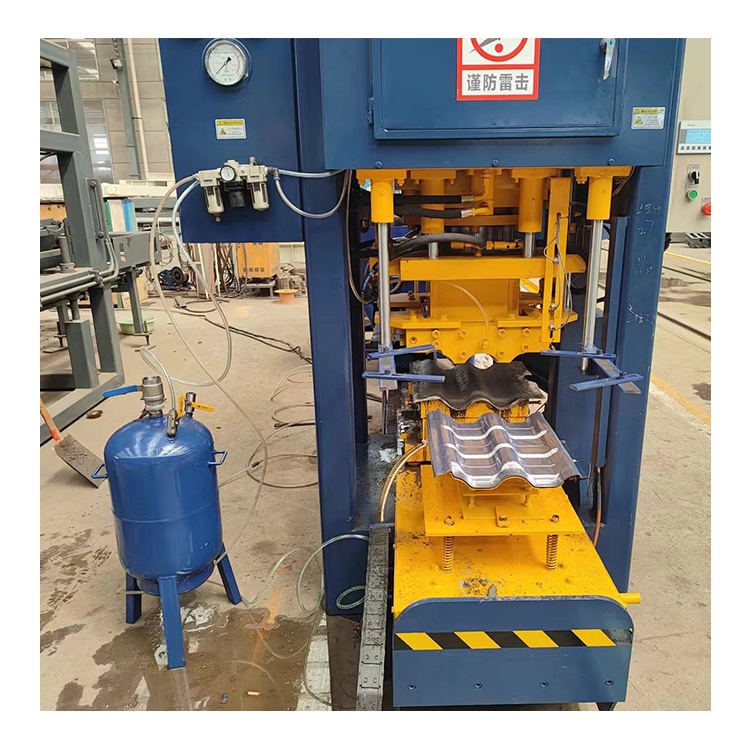

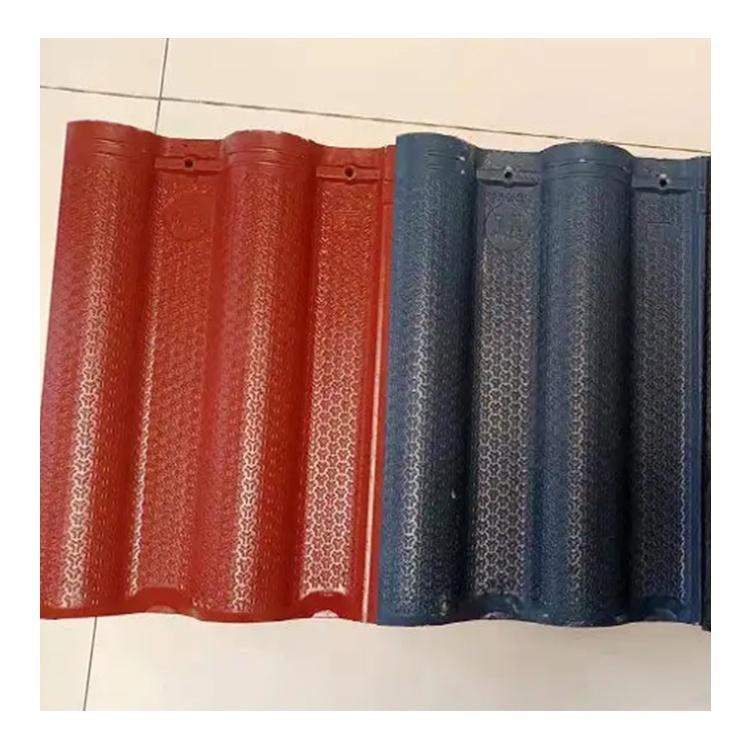

SMY8-128 roof tile making machine1. High speed of forming, high output and reliable performance. Using PLC(Mitsubishi technology) automatic control, hydraulicpneumatic, the production speed can up to 6-8 pieces/min, in a high yield and a better cost performance.2. Products by pressure filtration pressure forming, beautiful structure, variety, high density and strength, precise size, can meet the demands of various types of buildings, are quality products of concrete products.3. A multi-purpose machine, through the replacement of mold, the machine can produce various types main tile and matching tiles. Technological Process of roof tile making machineSand, cement, water---Mixer---Dosing machine---Spray release agent---Tile forming machine---Tile shelf---De-mould---Tile Yard---Maintenance
Specification
| 1 | Product Name | SMY8-128 roof tile making machine |
| 2 | Overall Dimension | 3300*1600*2480mm(Installed) |
| 3 | Moulding Cycle | 4-7 Pieces/Min |
| 4 | Forming Method | Hydraulic Pressure(No Vibration) |
| 5 | Moulding Pressure | 128-180 Ton |
| 6 | Weight of Main Machine | 5 Ton |
| 7 | Equipped Power | 7.5 KW |
| 8 | Mixer Power | 5.5 KW |
| 9 | Capacity | 3000-4000 Pieces/Shift(8 Hours) |
| 10 | Main Tile Size | 400*400mm, 600*600MM, 600*400MM, 600*1200MM(Customized) |
| 11 | Operated Workers | 3-4 Persons |
| 12 | Mould Type | CNC Making(Automatic) Tile machine Configuration |
Roof tile making machine Production Line other machinery to match with together working
| 1 | Main Roof Tile Making Machine | 1 Set |
| 2 | Constant Feeder Machine/Quantitative Feeder Machine | 1 Set |
| 3 | Mixer for Roof tile making machine | 1 Set |
| 4 | Elevator with Bucket | 1 Set |

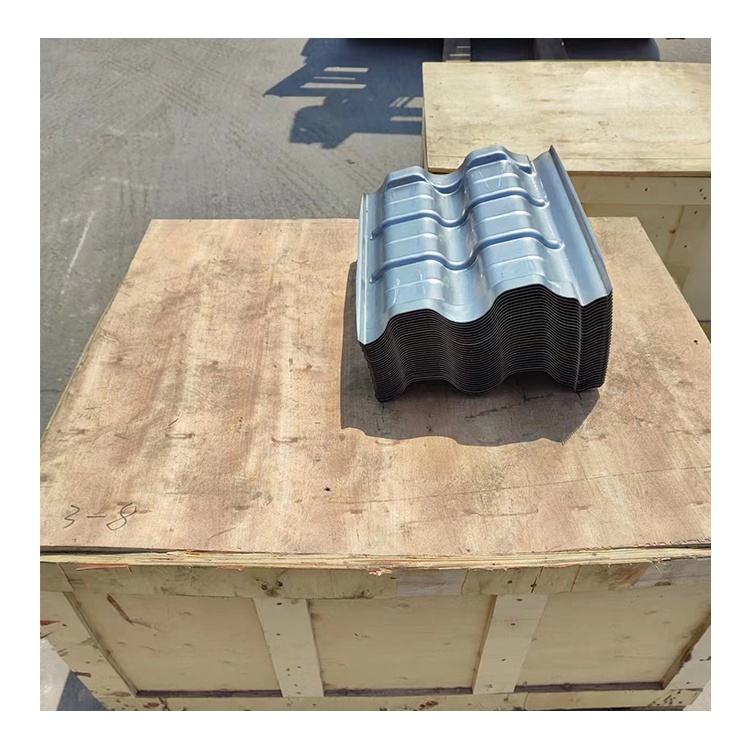

| 5 | Mould for Roof tile making machine | (At least)1 Set |
| 6 | Pallets for Roof tile making machine | 2000 Pieces |
| 7 | Air Comprssor | 1 Set Auxiliary Machine(Customer Prepare in Local) |
| Name | Specification | Quantity | |
| 1 | Workshop | (15*10)m² | 1 |
| 2 | Tile shelf | 120 Pieces/Shelf | 17 |
| 3 | Manual Hydraulic Forklift | 3 Ton | 1 |
| 4 | Air Compressor | W-0.9/7 | 1 |
| 5 | Maintenance Room | (10*3)m² | 1 |
| 6 | Tile Yard | 400m² | |
| 7 | Consumables | Filter Cloth, Wire Net, Release Agent |
 |  |
|---|
